JY-102 Linear chain screen printing machine single line 1-6 colors, customize multi-color

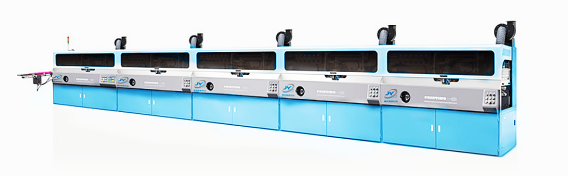

一， Appearance display of equipment:

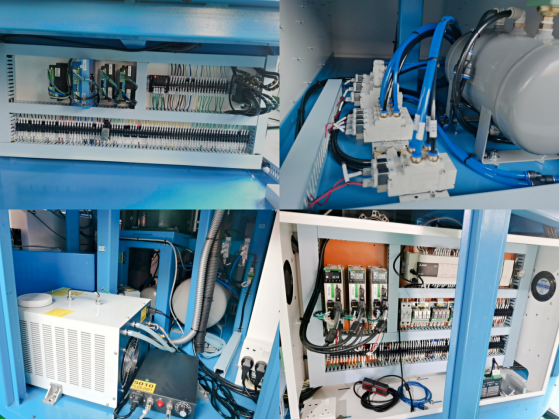

二, the equipment details display:

三, the technical parameters of the equipment:

 Equipment model:                         JY-102 Linear chain screen printing machine single line 1-6 colors, customize multi-color

 Maximum printing speed:              round bottle 3600 times/hour, oval bottle 4200 times/hour

 Maximum printing diameter:          round bottle ∅90, oval bottle width 100mm

 Maximum height of bottle:             260mm

 Number of printing colors:             customized according to customer needs

 Number of UV systems:                 customized according to customer requirements

 Power requirements:                     380V 3phase 50HZ 6.5kw/color

 Machine dimensions:                    1900mm(L)*1000mm(W)*1600mm(H)/color

 Use area (length x width):              3800mm (length) * 2000mm (width) / color

 Weight (machine net weight):        1400KG/single machine

 Compressed air specification:        5-8bar 100L/min

 Total power:                                    6.5kw/color

 Power supply:                                 3-phase 380V 50HZ 6.5KW

 Flame treatment fuel:                     LPG (medium pressure 0.8-2bar)

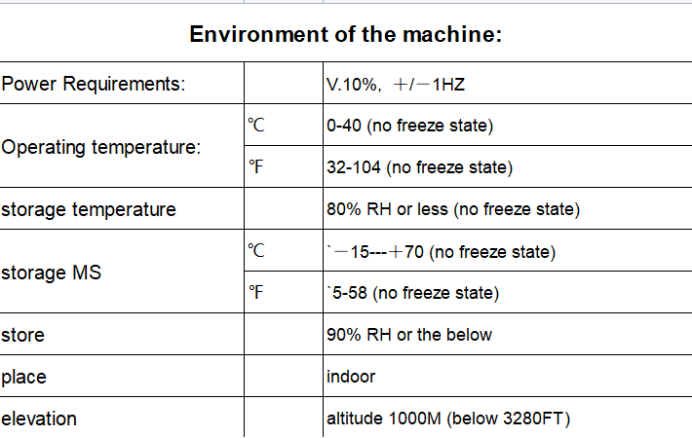

四, the storage and use environment of the equipment:

五, the scope of product application:

六, our services:

① If necessary, our engineers can provide door-to-door service.

② We will provide test videos and related test standards before delivery.

③ Please confirm the machine is good and debugging is completed before delivery.

④ We provide 12 months host warranty.

⑤ The products have  passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide a list of materials for wearing parts free of charge.

七，Our advantage:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

     so afte r-sales service is perfact.

③ We are a professional manufacturer of high-end screen printing equipment integrating production

    and sales,and we have professional scientific researchers.

④ We have a dedicated after-sales service team,and solve all problems for you in time.

八，International Shipping Packing:

九，After-sales service:

well maintained, machine has a life of more than 10 years.

main components are international famous brands,

our machine operation concept is guaranteed by patent technology.

The whole machine is guaranteed for one year,

and the main parts are replaced free of charge during the warranty period

(except for man-made damage and vulnerable parts).

After-sales professional engineers provide technical guidance and and provide lifetime

technical support.
