JY-121 turntable CCD visual positioning monochrome screen printing machine

JY-121 turntable CCD visual positioning monochrome screen printing machine

This production line includes: surface electrostatic dust removal system, CCD visual positioning,

LED UV surface drying on the turntable, workpiece rotation speed can be adjusted independently,

printing position servo rotation, left and right screen frame servo push, manual material placement

on the conveyor belt roller, robot automatic Loading and unloading materials, and manually

collecting containers.

Technical characteristics of the equipment:

1. Electromagnetic suction uses a cylinder to push forward and backward.

2. The unloading adopts a rotating suction cup to cooperate with front and rear scraping to ensure that the cover

     can be unloaded while the cover body is stationary, Vertical discharging.

3. The back of the tooling shaft is locked with a threaded nut to adjust the shaft clearance.

4. After rotating the tooling shaft, add a round belt to adjust the tightness.

5. The screen printing screen frame combination is reinforced, and the front end of the print head is supported.

一. Appearance Display:

二. Detailed Display:

三. Technical parameters:

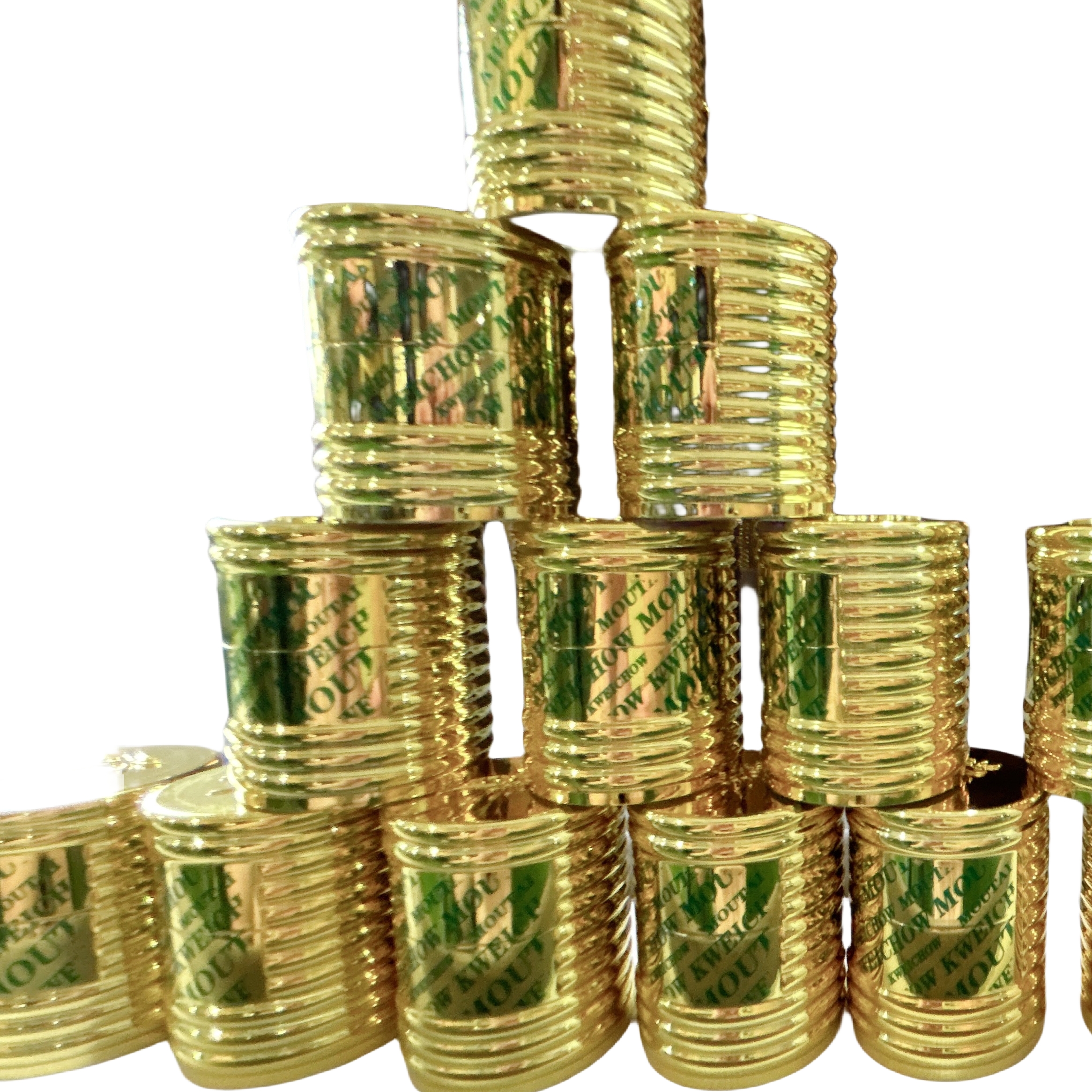

①. Printing workpiece: Moutai zodiac combination cover

②. Positioning mechanism: Visual alignment of the zodiac font on the top cover

③. Printing speed: 40--45PCS/min (2400--2700PCS/hour)

④. Power supply: 3∅ 380V 50HZ 9.0KW

⑤. Gas source: 5---7bar

四, the storage and use environment of the equipment:

五, the scope of application of the product:

六. Our services:

① Our engineers can provide door-to-door service if necessary.

② We will provide test videos and related test standards before delivery.

③ Please confirm that the machine is in good condition and debugged before delivery.

④ We provide a 12-month host warranty.

⑤ The product has passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide the material list of wearing parts free of charge.

七, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

    so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation

    equipment integrating production and sales. We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

八, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

     so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation

     equipment integrating production and sales.We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

九，International Shipping Packing:

十，After-sales service:

• Well maintained, machine has a life of more than 10 years.

• Main components are international famous brands,

• Our machine operation concept is guaranteed by patent technology.

• The whole machine is guaranteed for one year, and the main parts are replaced

  free of charge during the warranty period (except for man-made damage and vulnerable parts).

• After-sales professional engineers provide technical guidance and and provide lifetime  technical support.

  ---
