JY-201A Flat Automatic Thermal Transfer Machine Adds Servo Drive + CCD Vision Inspection

JY-201A Full Servo Flat Thermal Transfer Production Line

一， Equipment features:

This machine is mainly suitable for: thermal transfer process of wine bottle caps/plastic cap top sheets.

The production speed can reach 45-50 pieces per minute.

Equipped with CCD visual inspection system, it can realize positioning transfer, code reading,

character defect detection, two-dimensional positioning, and defective product removal in one go.

It saves labor and is simple and convenient to operate.

二， Technical points and process flow of the equipment:

① Connect the power and air source of the machine; and press the power button on the operation panel.

    When the green light is displayed, the power is connected;

② Start the operation button of the machine to put the machine in the state of waiting for printing;

③ Manually pour the workpiece to be transferred into the storage hopper of the elevator, and lift it

     into the vibration plate through the elevator. The vibration plate automatically sorts the material, and

     sends the workpiece to be transferred to the shift plate position through a single air rail. The workpiece

     is automatically grabbed and clamped by the loading robot and loaded into the turntable.

④ On the fixture, the turntable rotates to perform stamping/plasma surface treatment/stamping in place

      /thermal transfer/automatic removal of the unloading material by the robot/automatic delivery of the

      stainless steel chute;

⑤ The entire top is automatically transferred; the PLC controls the continuous and uninterrupted repetition

      of each mechanical action to achieve the purpose of efficient production.

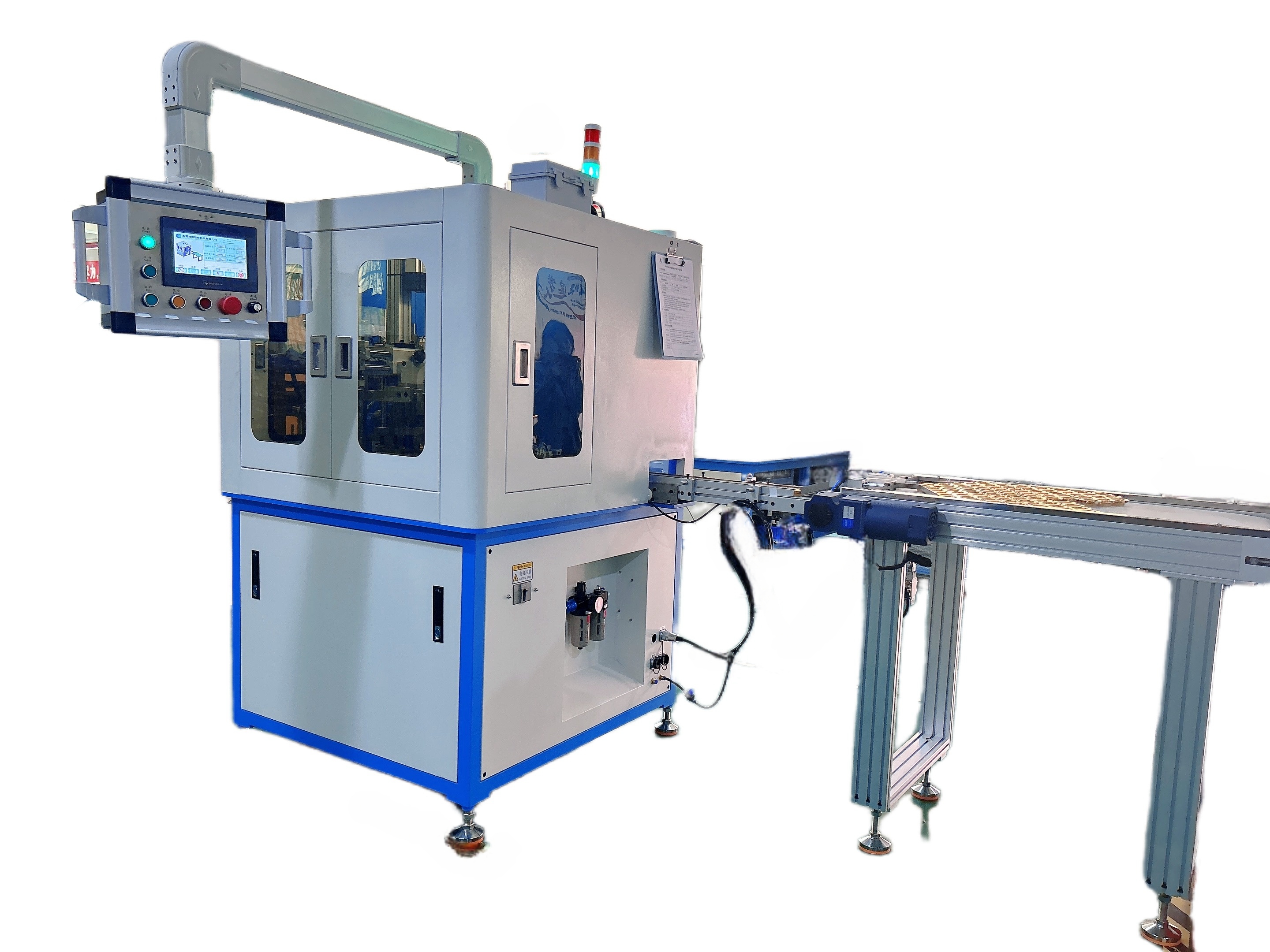

三， Equipment appearance display:

四， Equipment details display:

五， Technical parameters of the equipment:

①　Transfer workpiece: wine bottle cap, plastic cap top sheet

②　Transfer speed: about 40-45PCS/minute (2400--2700PCS/hour)

③　Power supply: three-phase 380V 50HZ 5.0KW

④　Air source: 5---7bar

⑤　Machine size: 3480mm*1100mm*1640mm, subject to the final product

六，Storage and use environment of the equipment:

七, the scope of application of the product:

八. Our services:

① Our engineers can provide door-to-door service if necessary.

② We will provide test videos and related test standards before delivery.

③ Please confirm that the machine is in good condition and debugged before delivery.

④ We provide a 12-month host warranty.

⑤ The product has passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide the material list of wearing parts free of charge.

九, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

    so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation

    equipment integrating production and sales. We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

十, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

     so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation

     equipment integrating production and sales.We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

十一，International Shipping Packing:

十二，After-sales service:

• Well maintained, machine has a life of more than 10 years.

• Main components are international famous brands,

• Our machine operation concept is guaranteed by patent technology.

• The whole machine is guaranteed for one year, and the main parts are replaced

  free of charge during the warranty period (except for man-made damage and vulnerable parts).

• After-sales professional engineers provide technical guidance and and provide lifetime  technical support.

  ---
