JY-201B Full Servo High Precision Flat Stamping Production Line

JY-201B Full Servo High Precision Flat Stamping Production Line

1. Equipment features:

  This machine is suitable for flat hot stamping of wine bag lids, plastic lids, and electroplated lids.

  The divider plus servo drive has the characteristics of high efficiency and stability, high yield rate,

   simple debugging and after-sales maintenance.

2, the technical points and process flow of the equipment:

①　Connect the power and air source of the machine; and press the power button on the operation panel.

         When the  green light is displayed, the power is connected;

②　Start the running button of the machine to put the machine in the state of waiting for printing;

③　Pour the workpiece to be hot stamped into the storage hopper of the elevator manually, and lift it into

      the vibration plate through the elevator. The vibration plate automatically sorts the material.

④　Send the workpiece to be hot stamped to the shift plate position through a single-channel air rail, and

       automatically grab and clamp it into the fixture of the turntable through the loading robot. The turntable

       rotates to perform stamping/plasma surface treatment/stamping in place/hot stamping/robotics automatically

        take out the material/stainless steel chute automatically sends it out.

⑤　The entire top is automatically hot stamped; through PLC control, each mechanical action is repeated

        continuously and uninterruptedly to achieve the purpose of efficient production.

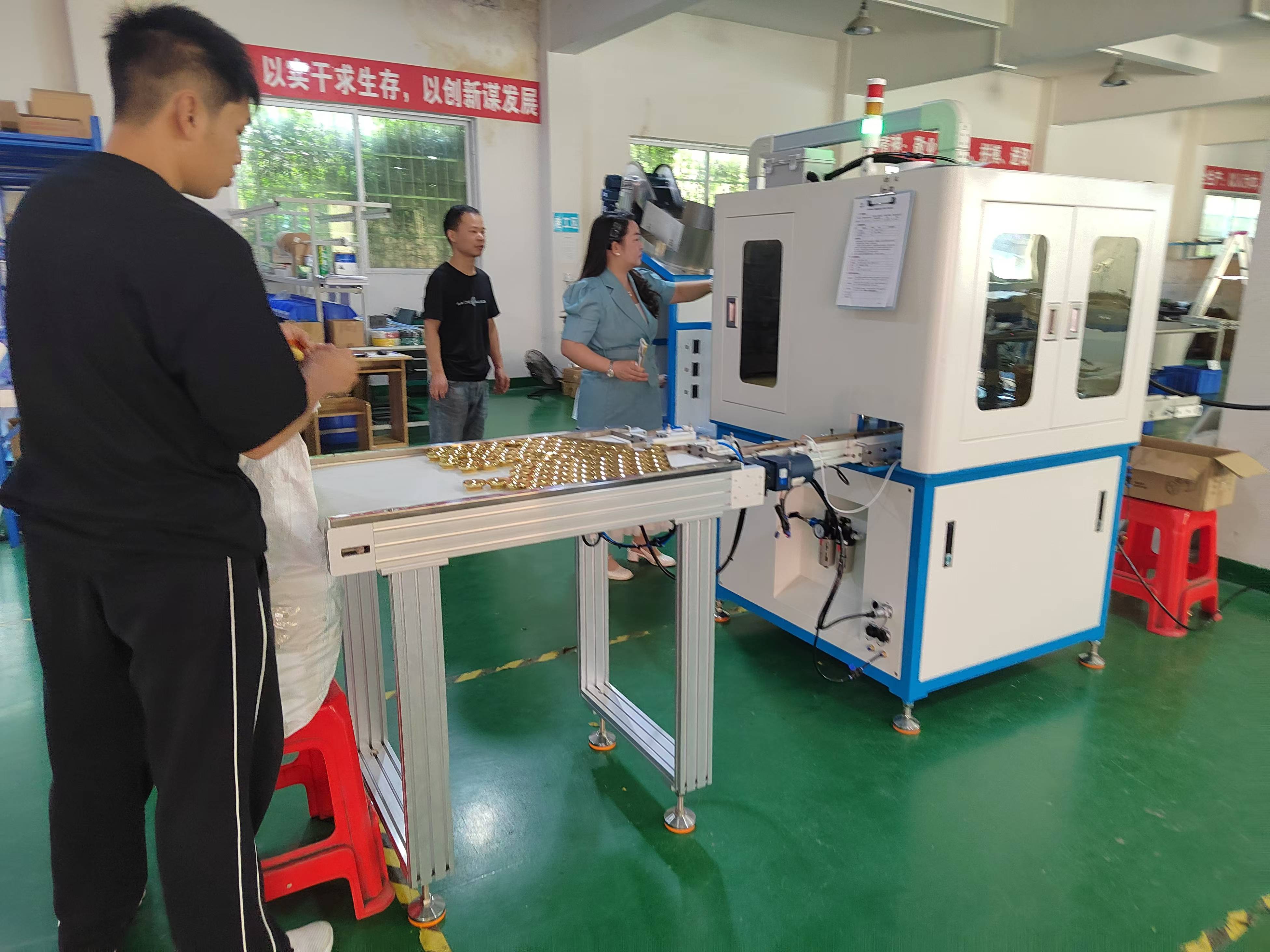

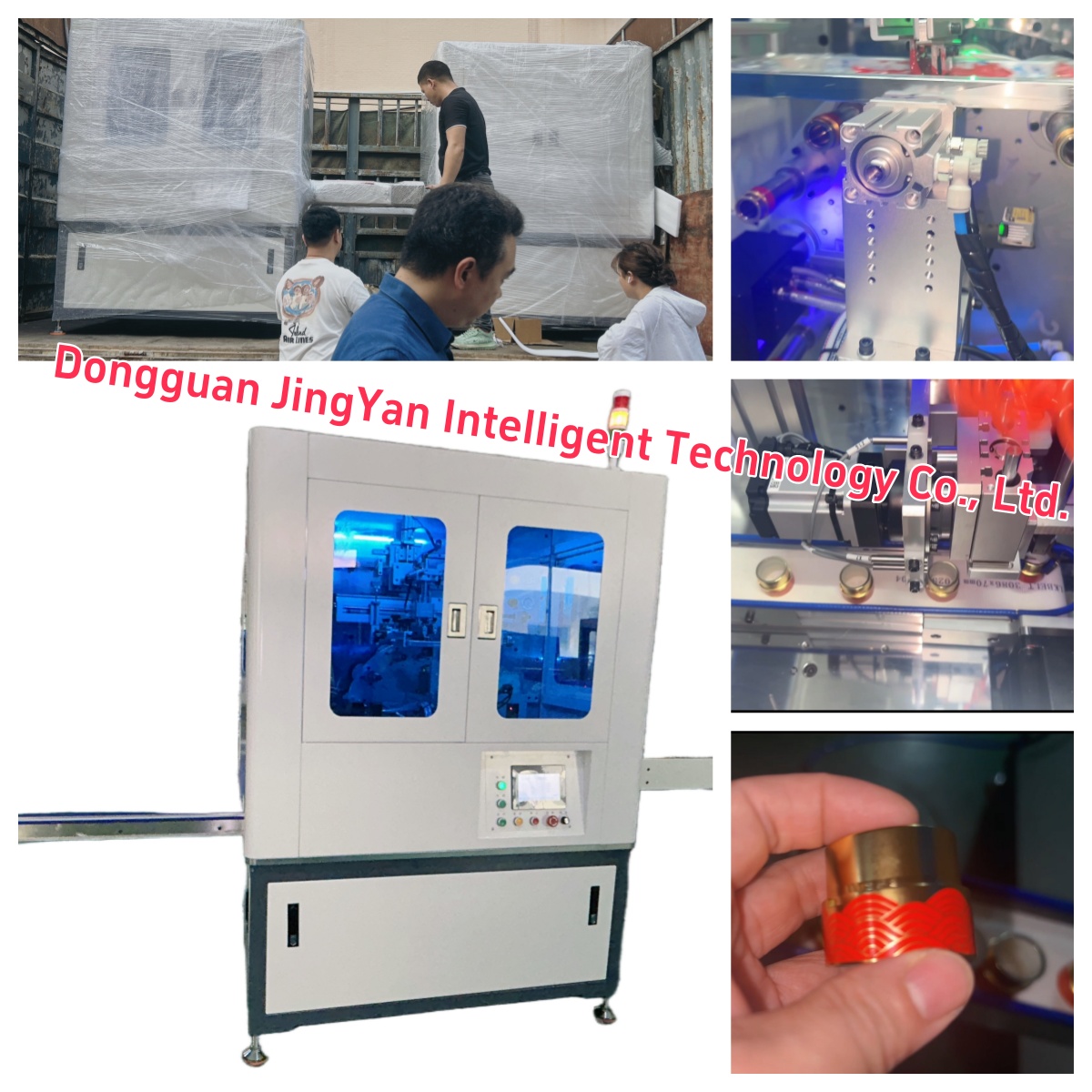

3. Equipment appearance display:

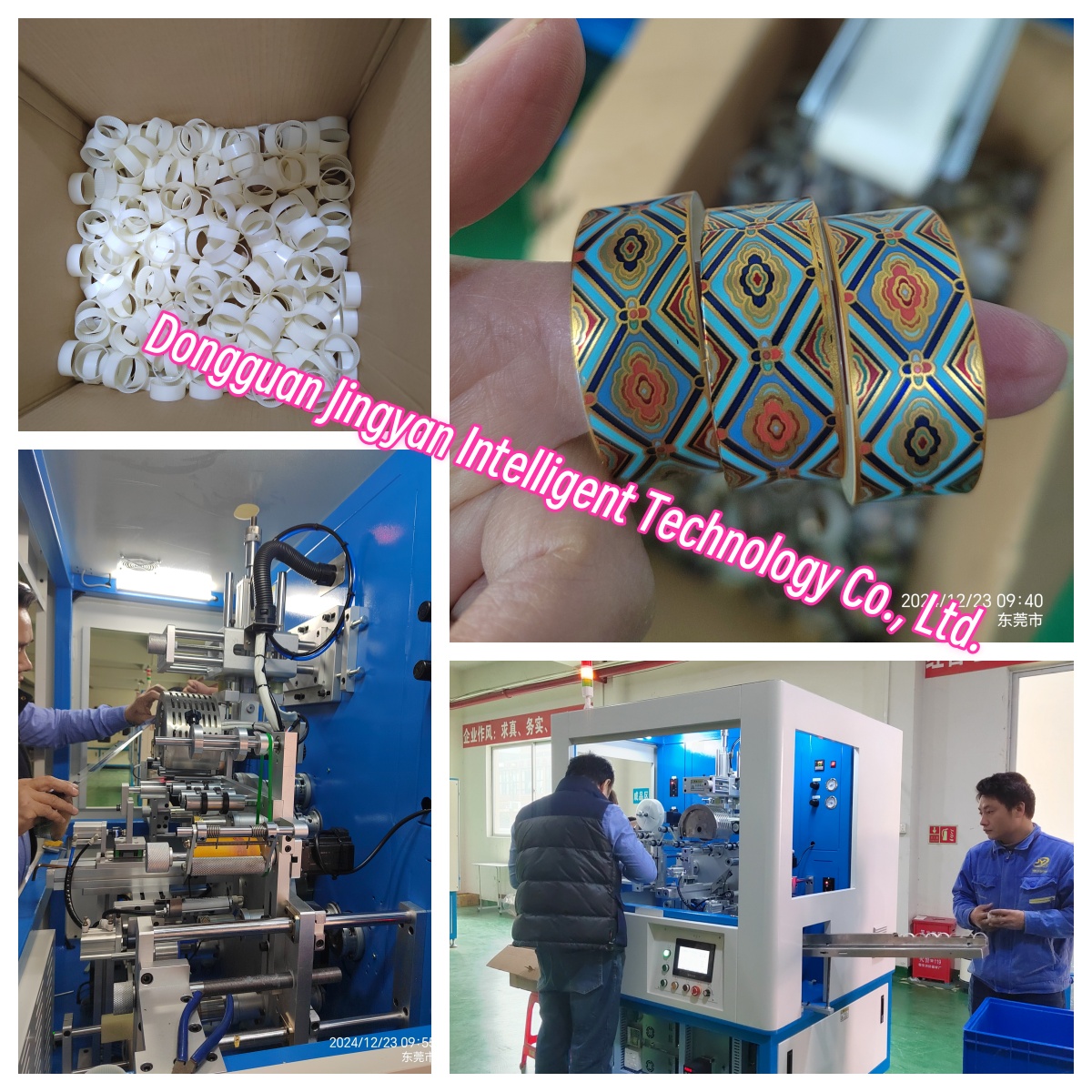

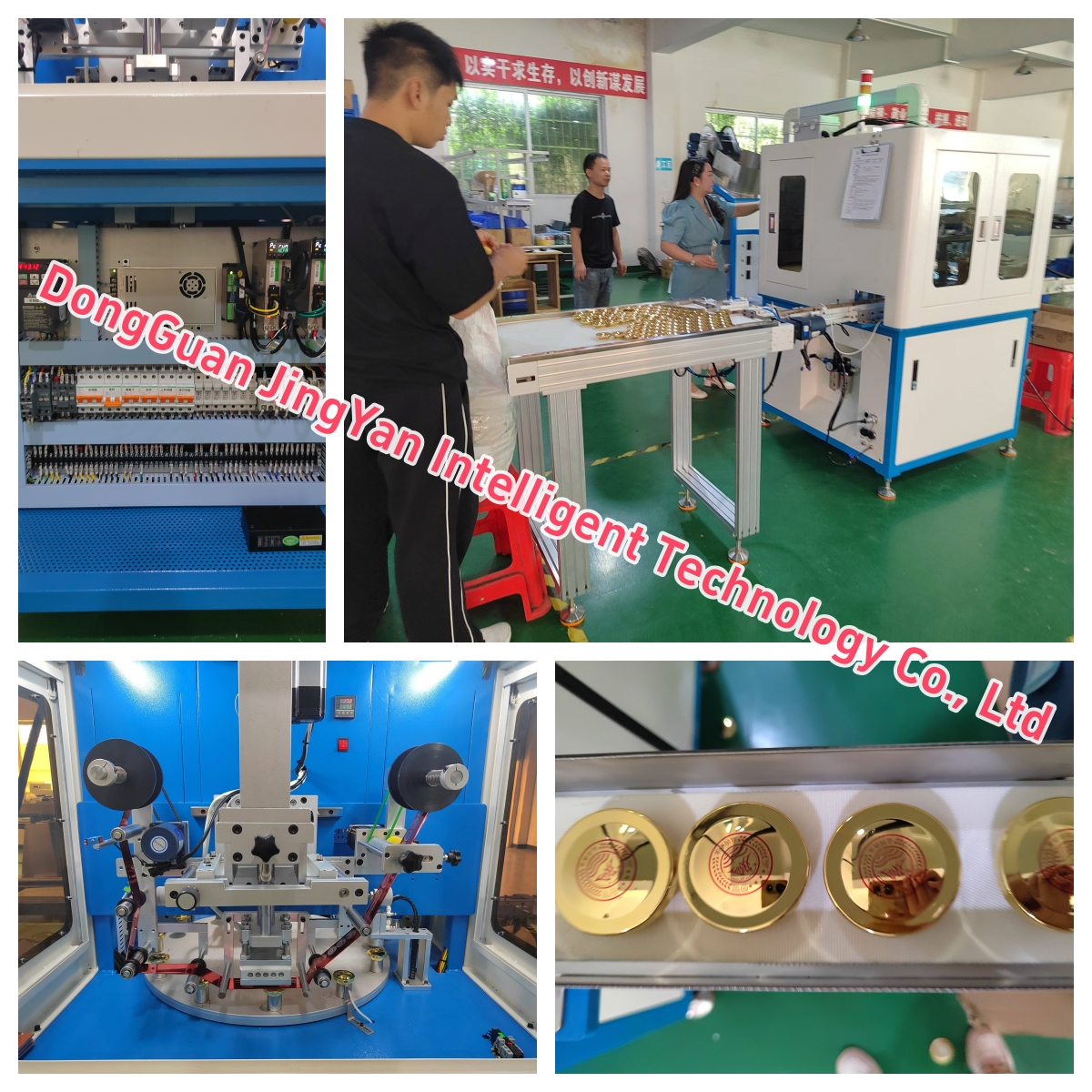

4. Equipment details display:

5， Technical parameters of the equipment:

① Hot stamping workpiece: wine cap, plastic cap, top cover

② Hot stamping speed: about 40-45PCS/minute (2400--2700PCS/hour)

③ Power supply: three-phase 380V 50HZ 5.0KW

④ Air source: 5---7bar

⑤ Machine size: 3480mm*1100mm*1640mm, subject to the final product

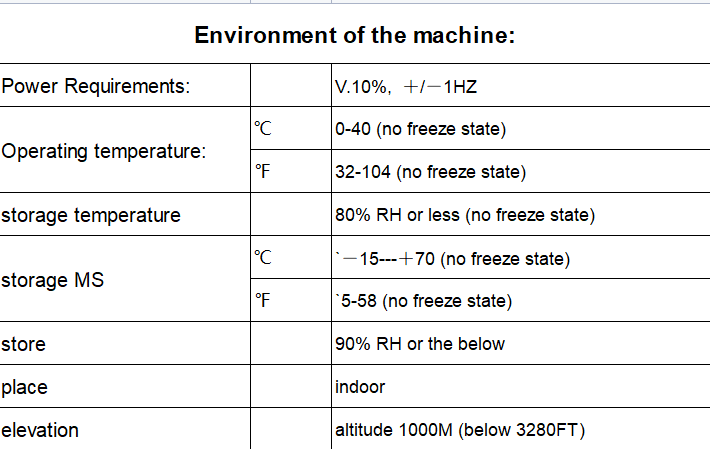

6，Storage and use environment of the equipment:

7, the scope of application of the product:

8. Our services:

① Our engineers can provide door-to-door service if necessary.

② We will provide test videos and related test standards before delivery.

③ Please confirm that the machine is in good condition and debugged before delivery.

④ We provide a 12-month host warranty.

⑤ The product has passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide the material list of wearing parts free of charge.

9, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

    so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation

    equipment integrating production and sales. We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

10, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

     so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation

     equipment integrating production and sales.We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

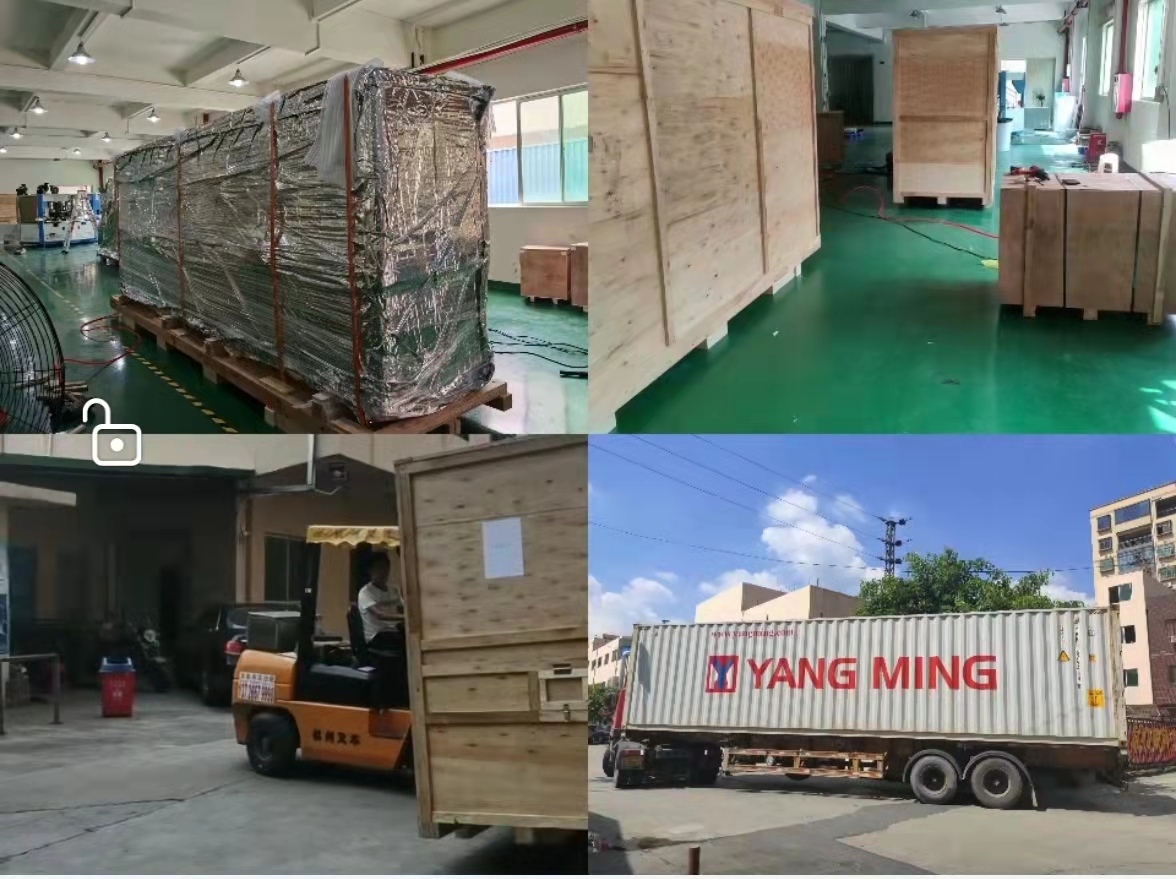

11，International Shipping Packing:

12，After-sales service:

• Well maintained, machine has a life of more than 10 years.

• Main components are international famous brands,

• Our machine operation concept is guaranteed by patent technology.

• The whole machine is guaranteed for one year, and the main parts are replaced

  free of charge during the warranty period (except for man-made damage and vulnerable parts).

• After-sales professional engineers provide technical guidance and and provide lifetime  technical support.

  ---
