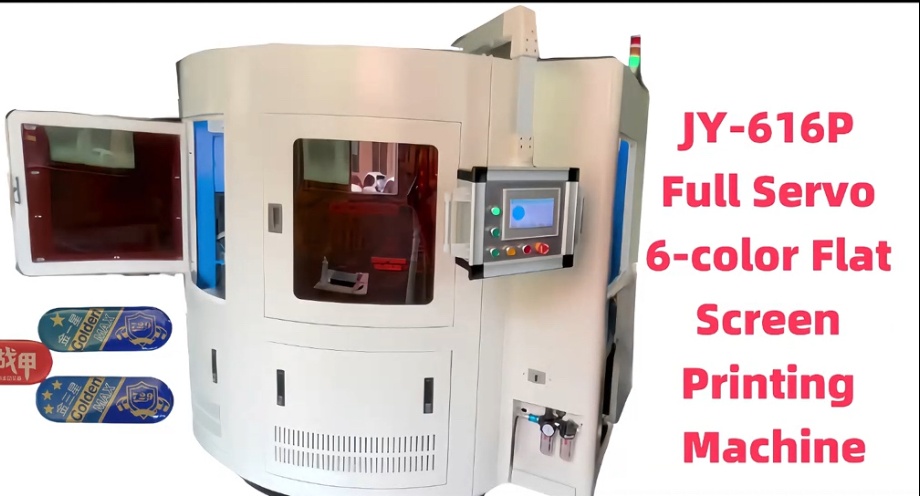

JY-616P 6-Color Full-Servo Rotary Table Flat Screen Printer

JY-616P 6-Color Full-Servo Rotary Table Flat Screen Printer

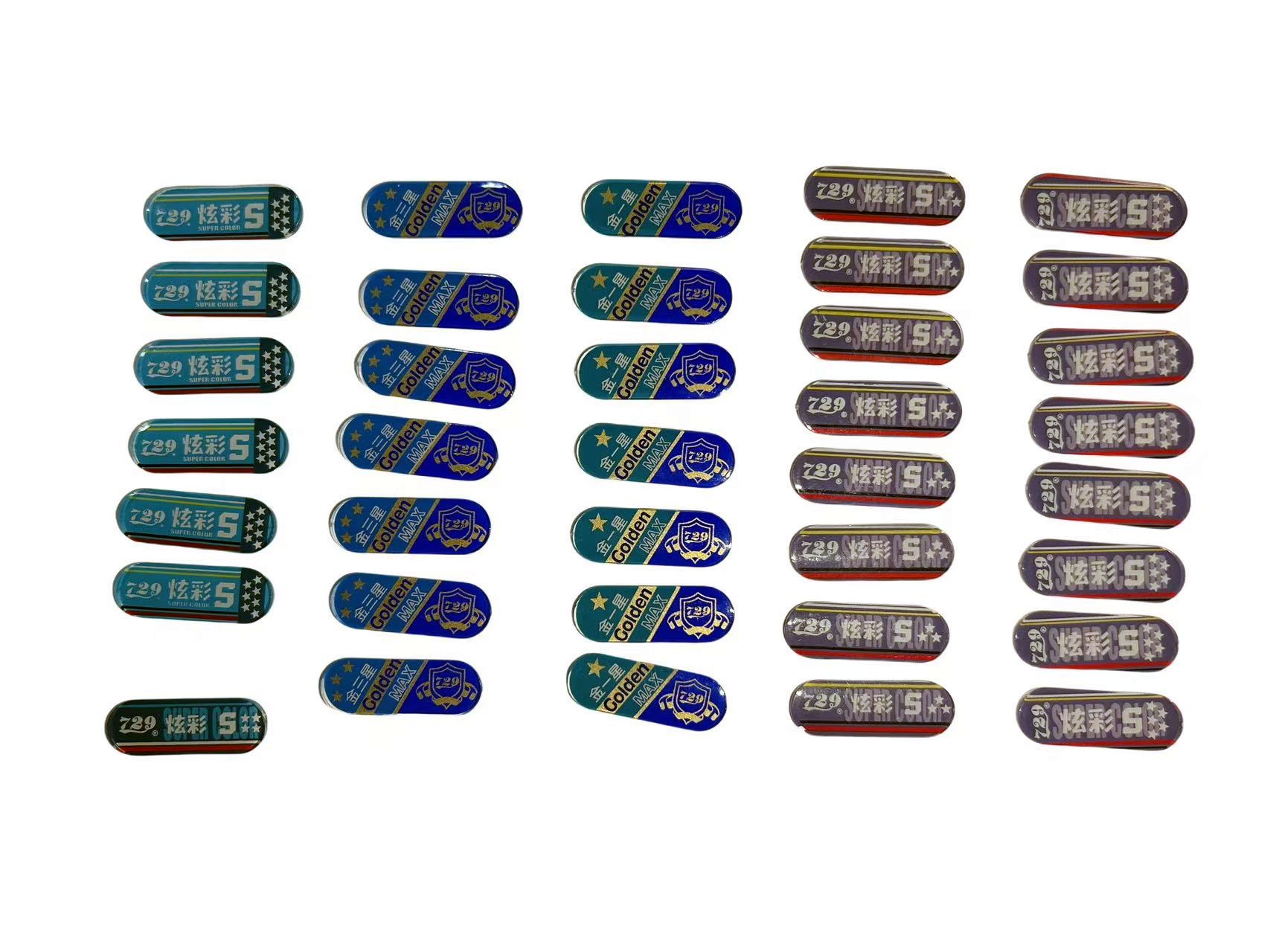

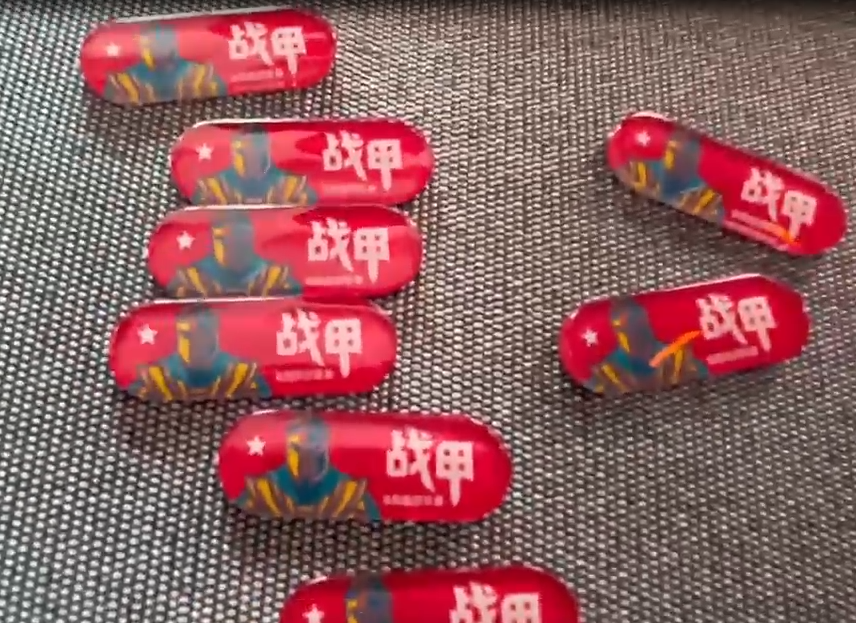

This machine is suitable for printing small flat surfaces, such as table tennis racket labels, cosmetics labels, toy labels, and other similar small

workpieces. It prints 15 pieces per die at 12-15 times per minute, with an hourly output of up to 10,800 pieces. This machine is highly efficient,

stable, and easy to maintain.

2， the technical points and process flow of the equipment:

1) The sign is manually placed on 24 custom fixtures and loaded onto a custom loading conveyor.

2) A linear module drives a pneumatic cylinder robot to grab the fixture plate and unload it.

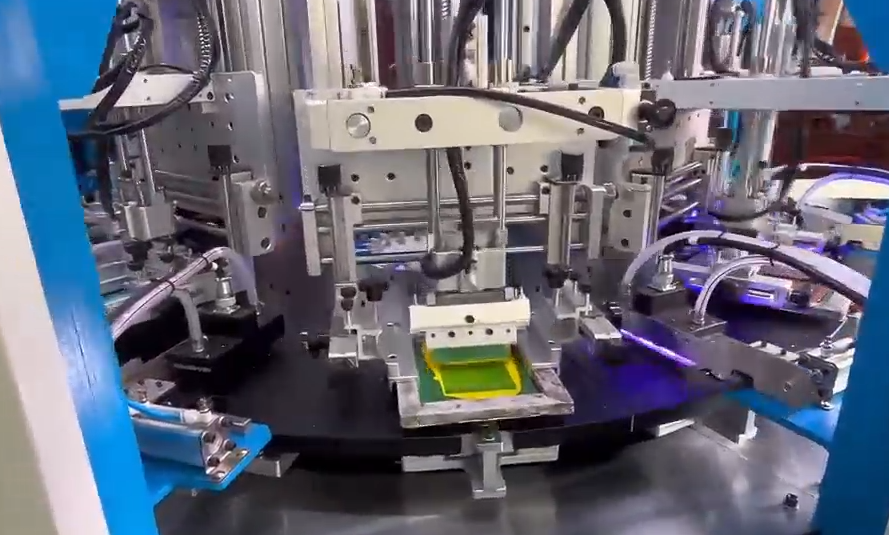

3) A servo turntable rotates the divider to print the first color, which is then dried and fixed with UV LEDs. The second color is then printed and

     fixed with UV LEDs. The third color is then printed and fixed with UV LEDs. The fourth color is then printed and fixed with UV LEDs. The fifth color

     is then printed and fixed with UV LEDs. The sixth color is then printed and fixed with UV LEDs.

4) A linear module drives a pneumatic cylinder robot to grab the fixture plate and unload it onto the conveyor.

5) Manual collection, inspection, and packaging are performed.

6) The above steps are repeated, achieving labor-saving and efficient production.

3， Equipment appearance display:

4， Equipment details display:

5， Equipment Technical Parameters:

1. Printing Target: Top caps (24 sets of fixtures are required for each cap)

2. Printing Color: Single color (printing two caps at a time)

3. Printing Speed: 90-110 pcs/min (45-55 prints/min)，5400-6600 pcs/hour depending on actual ink)

4. Power Supply: 3∅ 380V 50Hz 8.5kW

5. Air Pressure: 5-7bar

5. Equipment Dimensions: 4400mm L x 2320mm W x 1920mm H

6，Storage and use environment of the equipment:

7, the scope of application of the product:

8. Our services:

① Our engineers can provide door-to-door service if necessary.

② We will provide test videos and related test standards before delivery.

③ Please confirm that the machine is in good condition and debugged before delivery.

④ We provide a 12-month host warranty.

⑤ The product has passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide the material list of wearing parts free of charge.

9, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

    so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation

    equipment integrating production and sales. We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

10, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

     so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation

     equipment integrating production and sales.We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

11，International Shipping Packing:

12，After-sales service:

• Well maintained, machine has a life of more than 10 years.

• Main components are international famous brands,

• Our machine operation concept is guaranteed by patent technology.

• The whole machine is guaranteed for one year, and the main parts are replaced free of charge during the warranty period (except for

     man-made damage and vulnerable parts).

• After-sales professional engineers provide technical guidance and and provide lifetime  technical support.

  ---
