JY-124-S2 Dual-head High-speed Screen Printing and Inkjet Printing Production Line

JY-124-S2 Dual-head High-speed Screen Printing and Inkjet Printing Production Line

  Ideal for positioning printing on cylindrical items such as wine caps, cosmetic caps, and beverage caps. It can print two products at a time.

 The machine operates efficiently and stably, enabling precise positioning printing at speeds of 90-110 prints per minute. It's also easy to

 operate and maintain.

2， the technical points and process flow of the equipment:

① The caps to be printed are manually placed on the manual loading table. The conveyor moves slowly forward to the high-speed conveyor

     for transport.

② The workpieces are transferred to the infeed conveyor for distribution and transport, then to the loading position of the robot. After sensing,

      the robot grabs the workpiece and clamps it into the fixture.

③ The 24-station rotary table rotates sequentially, performing stamping/electrostatic dust removal/plasma surface treatment/positioning/

      screen printing/LED UV curing/hot air surface drying (6-7 seconds)/plasma surface treatment/dynamic QR code printing/LED UV curing/robot

      unloading/conveyor delivery/visual inspection of QR codes/rejection of defective QR codes/manual loading and unloading.

④ The cycle continues, ensuring efficient production.

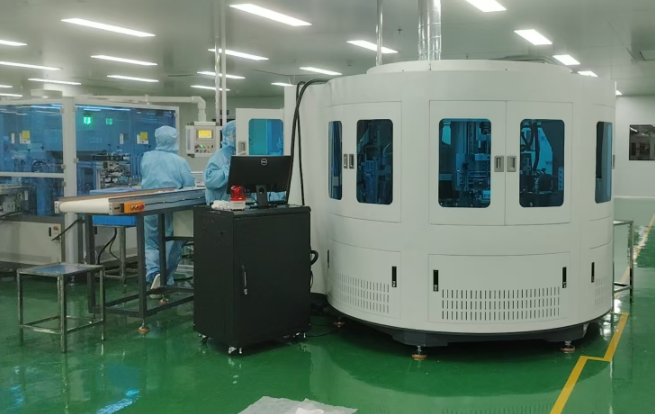

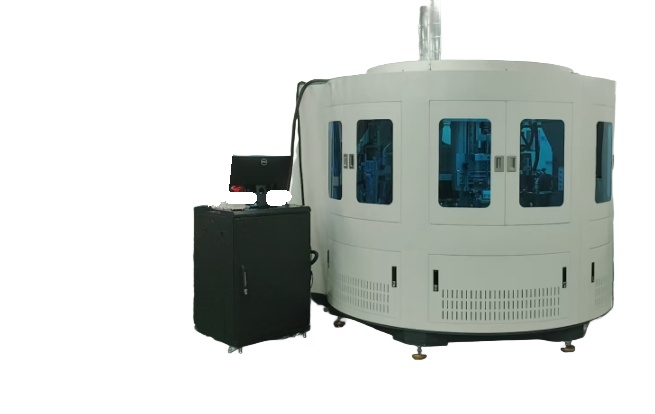

3， Equipment appearance display:

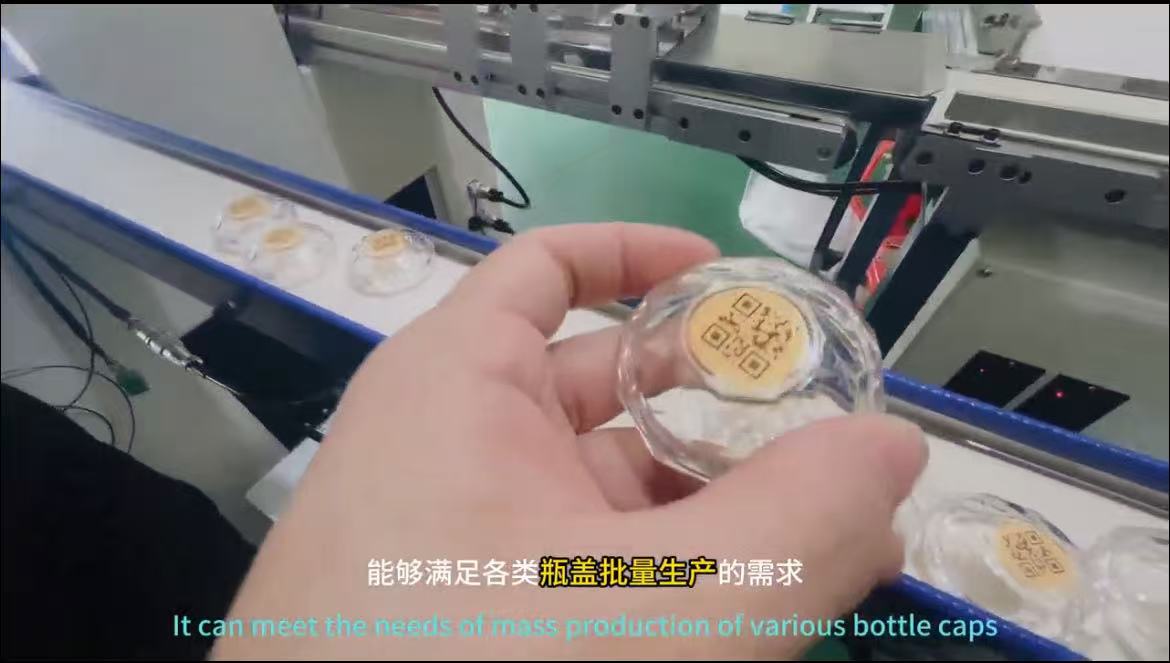

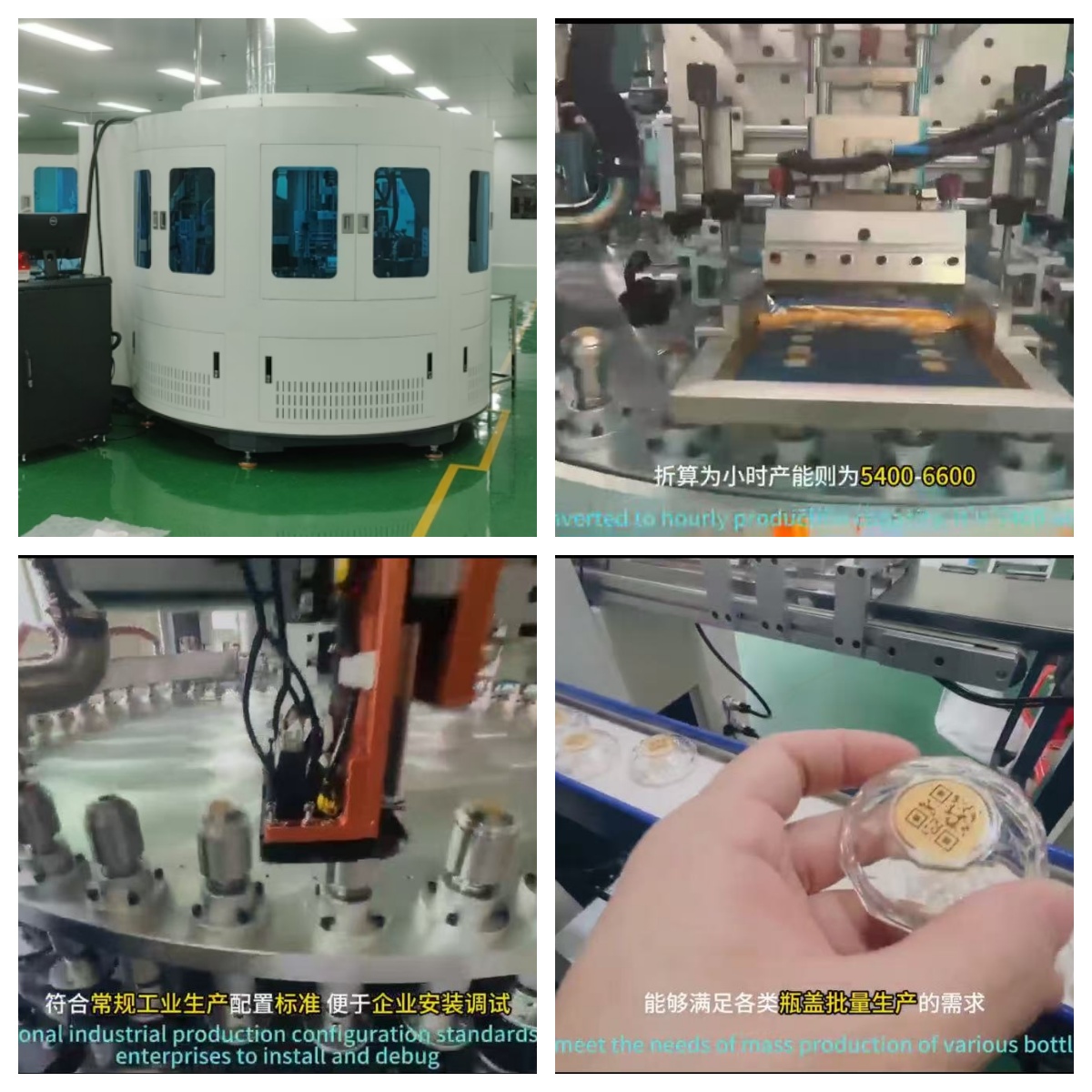

4， Equipment details display:

5， Equipment Technical Parameters:

1. Printing Target: Top caps (24 sets of fixtures are required for each cap)

2. Printing Color: Single color (printing two caps at a time)

3. Printing Speed: 90-110 pcs/min (45-55 prints/min, 5400-6600 pcs/hr depending on actual ink)

4. Power Supply: 3∅ 380V 50Hz 8.5kW

5. Air Pressure: 5-7bar

5. Equipment Dimensions: 4400mm L x 2320mm W x 1920mm H

6，Storage and use environment of the equipment:

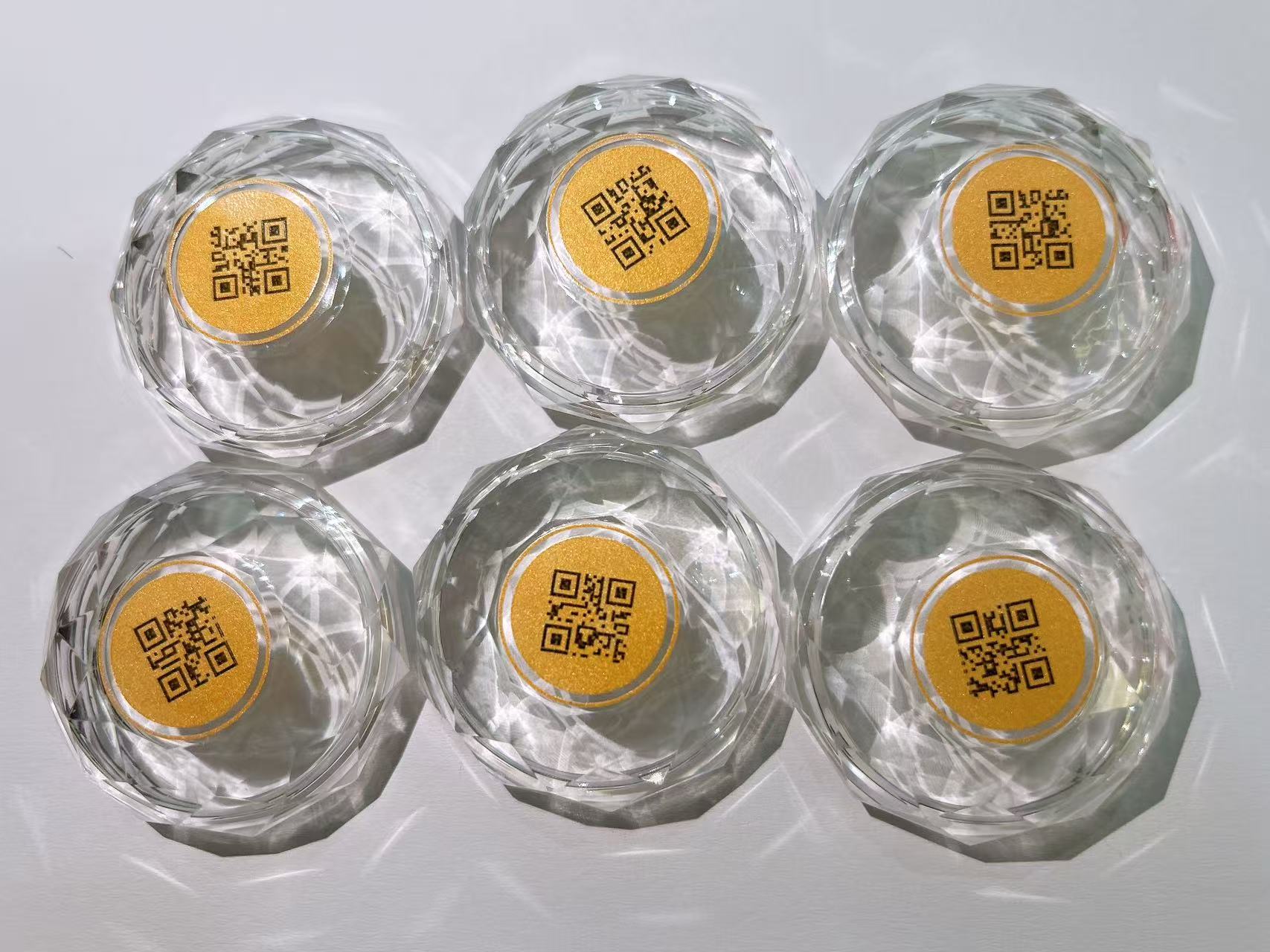

7, the scope of application of the product:

8. Our services:

① Our engineers can provide door-to-door service if necessary.

② We will provide test videos and related test standards before delivery.

③ Please confirm that the machine is in good condition and debugged before delivery.

④ We provide a 12-month host warranty.

⑤ The product has passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide the material list of wearing parts free of charge.

9, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,  so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation equipment integrating production and sales.

     We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

10, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing, so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation equipment integrating production and sales.We have

     professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

11，International Shipping Packing:

12，After-sales service:

• Well maintained, machine has a life of more than 10 years.

• Main components are international famous brands,

• Our machine operation concept is guaranteed by patent technology.

• The whole machine is guaranteed for one year, and the main parts are replaced free of charge during the warranty period (except for

     man-made damage and vulnerable parts).

• After-sales professional engineers provide technical guidance and and provide lifetime  technical support.
