JY-216H-T High-Precision Positioning Side-Transfer Hot Stamping All-in-One Machine

1，JY-216H-T High-Precision Positioning Side-Transfer Hot Stamping All-in-One Machine

     This production line is custom-developed for the hot stamping and transfer printing of 7th-generation Haizhilan shells. It features a patented

mechanical-servo positioning structure, enabling one-pass completion of two key processes: thermal transfer printing and hot stamping, with a

maximum speed of 34 units per minute.

     Boasting user-friendly operation and labor cost reduction, the machine is also adaptable to similar processes for cosmetics, daily necessities

and other wine caps. We provide custom non-standard production line solutions for comparable processing requirements.

2， the technical points and process flow of the equipment:

• Operators pour workpieces to be transferred into the hopper of the elevator.

• The elevator automatically lifts the workpieces into the Z-type lifting and sorting machine for lifting, selection and sorting.

• The sorted workpieces are automatically conveyed to the feeding conveyor belt of the main machine.

• The servo motor rotates to grab and clamp the workpieces onto the fixture shaft of the turntable automatically.

• The 16-station rotary turntable rotates sequentially to perform the following operations in turn: clamping in place → static electricity removal → stepping motor rotation combined with photoelectric positioning → servo motor rotation combined with photoelectric positioning → thermal transfer via servo motor-driven fixture shaft rotation → hot stamping via servo motor-driven fixture shaft rotation → 90° servo motor rotation for workpiece picking and unloading → automatic conveying via the belt. Thermal transfer and hot stamping are completed automatically; paper feeding and rewinding are executed automatically upon process completion.

• The above actions cycle continuously to realize non-stop automatic thermal transfer and hot stamping, achieving high-quality and high-efficiency production.

  ---

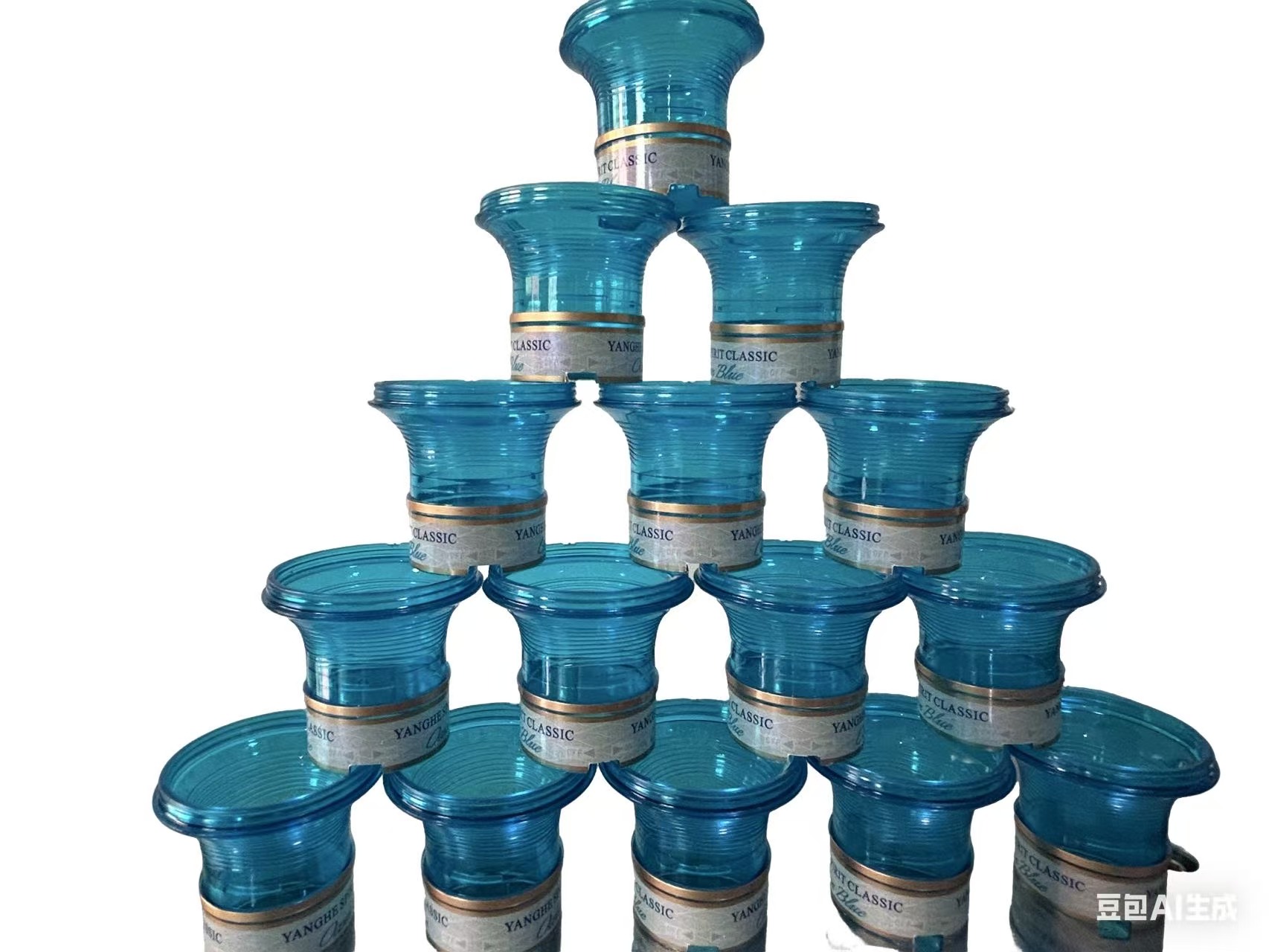

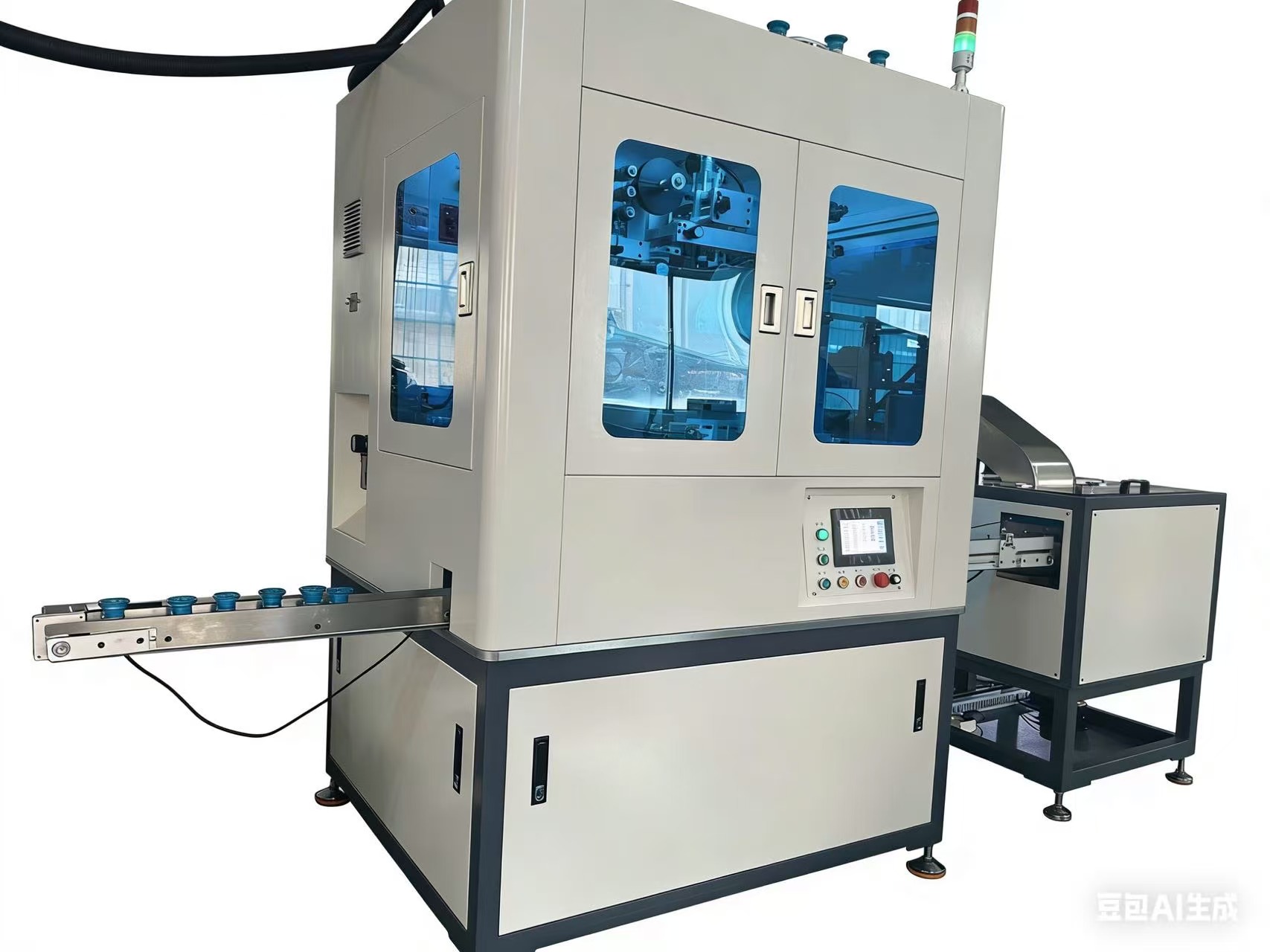

  3， Equipment appearance display:




•


4， Equipment details display:

5， Equipment Technical Parameters:

Hot Stamping Workpieces：Designed according to the provided caps

Primary Positioning Mechanism：Stepping motor rotation with photoelectric control positioning

Precision Positioning Mechanism：Servo motor rotation with photoelectric control positioning

Hot Stamping SpeedApprox. 30–35 PCS/min (1800–2100 PCS/hour）

Yield Rate：≥ 98.5% (no missed stamping, bubbles or wrinkles）

Power Supply：3∅ 380V 50Hz 10.5kW

Air Supply：5–7 bar

Overall Machine Dimensions：4540×1420×2100 mm

6，Storage and use environment of the equipment:

7, the scope of application of the product:

8. Our services:

① Our engineers can provide door-to-door service if necessary.

② We will provide test videos and related test standards before delivery.

③ Please confirm that the machine is in good condition and debugged before delivery.

④ We provide a 12-month host warranty.

⑤ The product has passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide the material list of wearing parts free of charge.

9, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,  so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation equipment integrating production and sales.

     We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

10, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing, so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation equipment integrating production and sales.We have

     professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

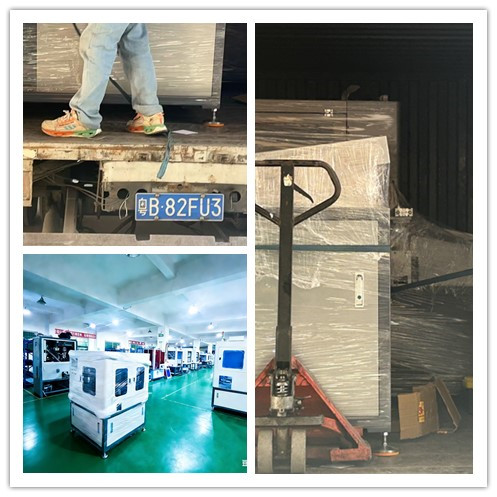

11，International Shipping Packing:
