JY‑410 Fully‑Auto 2‑Hot‑Stamping & 2‑Printing Intelligent Combo Machine

1，JY‑410 Fully‑Auto 2‑Hot‑Stamping & 2‑Printing Intelligent Combo Machine

All‑in‑one Intelligent Production Solution for Cylindrical Cap Printing & Hot‑Stamping!

Specially designed for cylindrical workpieces such as wine caps, cosmetic caps and daily‑use product caps,

it integrates printing and hot‑stamping in one‑step forming.

Dual print heads can be operated independently or linked with hot‑stamping for highly‑flexible processes.

Print‑only speed: 55 pcs/min; Printing plus hot‑stamping speed: 45 pcs/min.

Full‑process intelligent automation: automatic feeding & lifting, robotic loading‑unloading, plasma surface pretreatment,

dual‑servo screen printing, dual‑head servo hot‑stamping and dual‑group LED‑UV curing are completed in one continuous workflow.

2， the technical points and process flow of the equipment:

1）The two print heads can be controlled independently or work with hot‑stamping, offering high flexibility.

2）Maximum productivity reaches 50‑55 pcs/min for non‑positioning printing;

3）the overall speed is 45‑50 pcs/min for printing combined with hot‑stamping.

4）Floor‑space of the complete machine includes: automatic lifting & sorting system, robotic auto‑loading, plasma surface treatment,

        dual sets of servo‑driven automatic screen printing units, two sets of LED‑UV curing systems, one servo roller hot‑stamping head,

        one flat hot‑stamping head and servo‑driven sheet collection.

5）Parts are automatically unloaded by robot, then manually collected and packed into boxes.

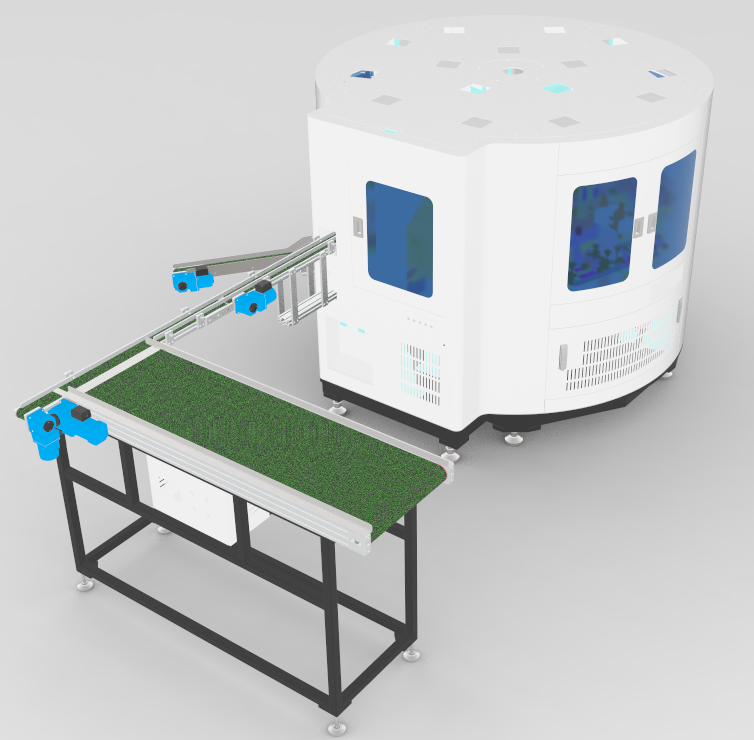

3， Equipment appearance display:

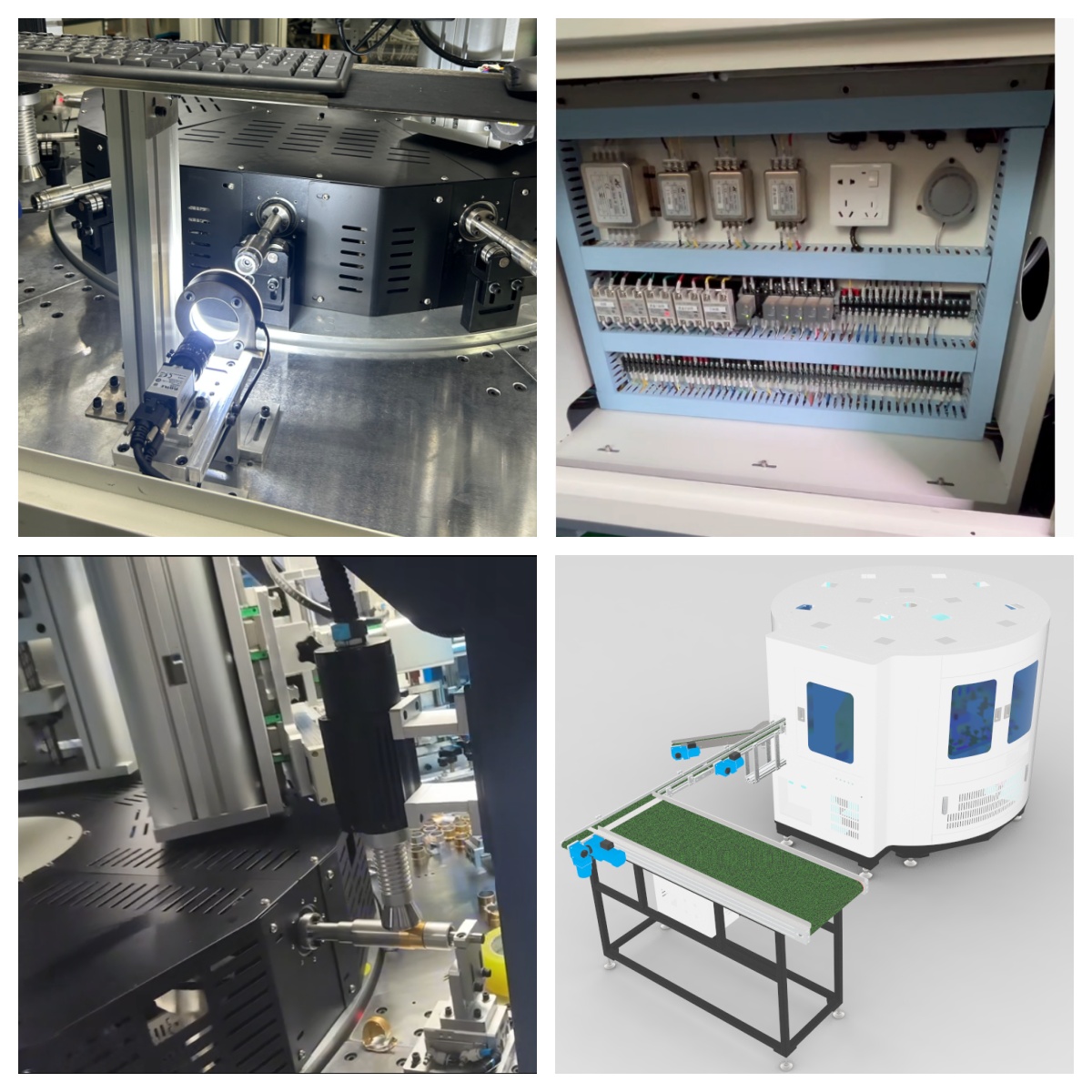

4， Equipment details display:

5， Equipment Technical Parameters:

• Print‑ready Workpieces:

1. Qingfen‑series Caps (Outer caps: Qing20, Qing25, Qing26, Qing30, Duomeng)

2. Dragon‑Phoenix Auspicious Lower Sleeves

3. Other products: non‑positioning screen‑printed & hot‑stamped caps, max. diameter 50 mm, max. height 60 mm.

• Screen‑printing Speed: 50‑55 pcs/min (3000‑3300 pcs/hour) Screen‑printing + Hot‑stamping Speed: 40‑45 pcs/min (2400‑2700 pcs/hour)

• Power Supply: 3‑Phase 380V, 50Hz, 18.5 kW

• Yield Rate: ≥98% (no missing print, blurring, misregistration or other defects)

• Registration Accuracy for Screen‑printing & Hot‑stamping: ±0.10 mm

• Air Supply: 5‑7 bar

• Machine Overall Dimensions: L 3700 × W 2700 × H 2180 mm

• Floor‑space for Equipment Operation: L 5000 mm × W 6000 mm × H 2400 mm

6，Storage and use environment of the equipment:

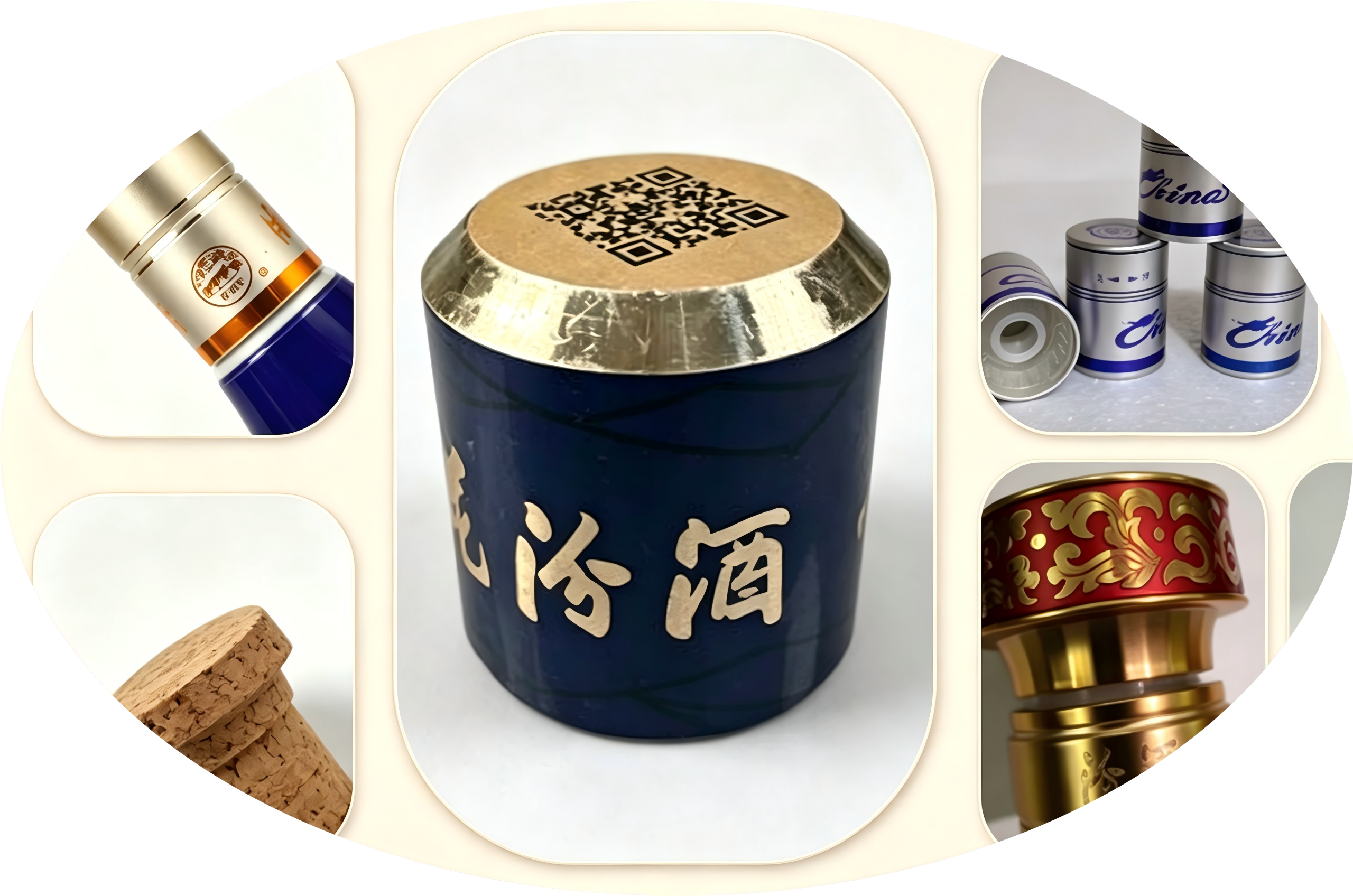

7, the scope of application of the product:

8. Our services:

① Our engineers can provide door-to-door service if necessary.

② We will provide test videos and related test standards before delivery.

③ Please confirm that the machine is in good condition and debugged before delivery.

④ We provide a 12-month host warranty.

⑤ The product has passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide the material list of wearing parts free of charge.

9, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,  so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation equipment integrating production and sales.

     We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

10, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing, so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation equipment integrating production and sales.We have

     professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

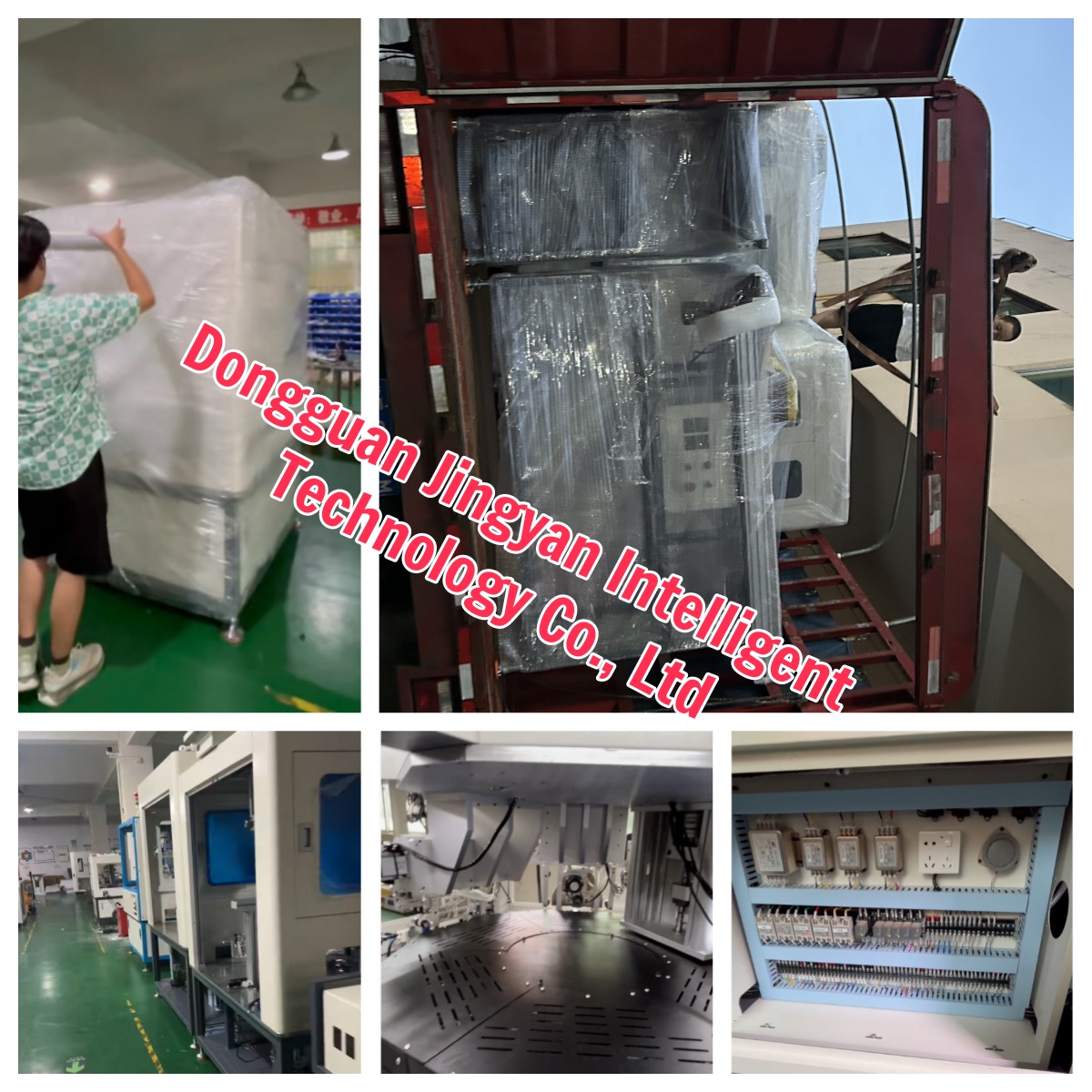

11，International Shipping Packing:

12，After-sales service:

• Well maintained, machine has a life of more than 10 years.

• Main components are international famous brands,

• Our machine operation concept is guaranteed by patent technology.

• The whole machine is guaranteed for one year, and the main parts are replaced free of charge during the warranty period (except for

        man-made damage and vulnerable parts).

• After-sales professional engineers provide technical guidance and and provide lifetime  technical support.
