JY-310D fully servo 3-color intelligent screen printing machine

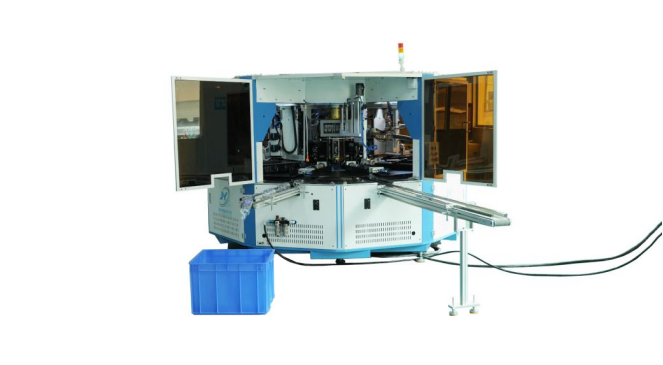

一，Appearance display of equipment:

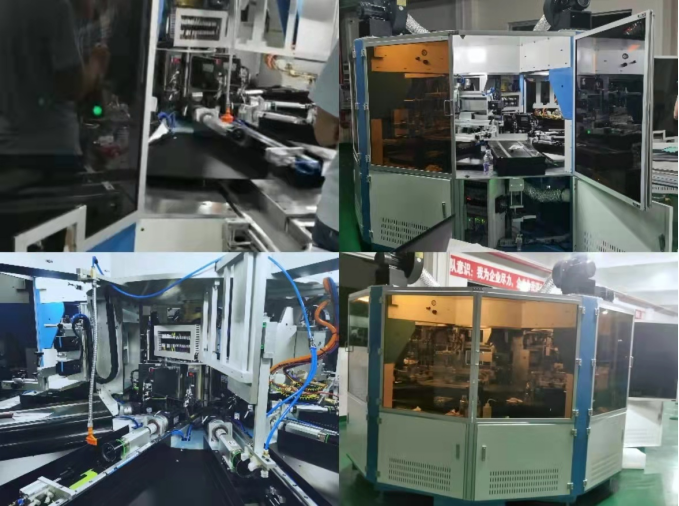

二, the equipment details display:

三， the technical parameters of the equipment:

Equipment model:                                             JY-310D

Maximum printing speed:                                 3000pcs/hour for round bottle, 1080pcs/hour for square bottle

Maximum printing diameter of round bottle:  ∅90

The maximum height of the bottle:                  280mm

Number of printing colors:                                3 sets of full servo independent control

Number of UV systems:                                     3 sets of electronic UV independent control

Power requirements:                                          380V 3phase 50HZ 38kw

Machine dimensions:                                         4700mm(length)*3000mm(width)*2900mm(height)

Use area (length x width):                                  12000mm (length) * 1400mm (width)

Weight (machine net weight):                            4180KG

Compressed air specification:                           5-8bar 100L/min

Total power:                                                         38 KW

Power supply:                                                      3-phase 380V 50HZ 38KW

Flame treatment fuel:                                          LPG (medium pressure 0.8-2bar)

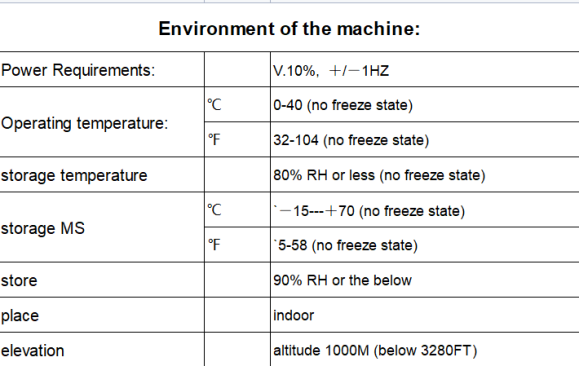

四, the environment of the equipment:

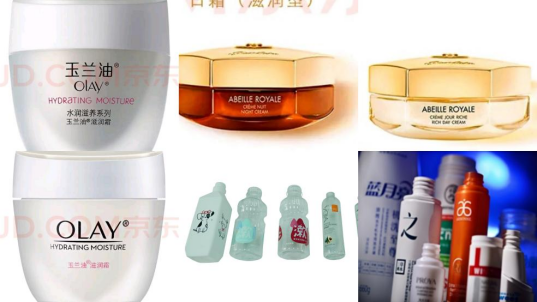

五， Application of the product:

六, our services:

① If necessary, our engineers can provide door-to-door service.

② We will provide test videos and related test standards before delivery.

③ Please confirm the machine is good and debugging is completed before delivery.

④ We provide 12 months host warranty.

⑤ The products have  passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide a list of materials for wearing parts free of charge.

七，Our advantage:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

  so afte r-sales service is perfact.

③ We are a professional manufacturer of high-end screen printing equipment integrating production

  and sales,and we have professional scientific researchers.

④ We have a dedicated after-sales service team,and solve all problems for you in time.

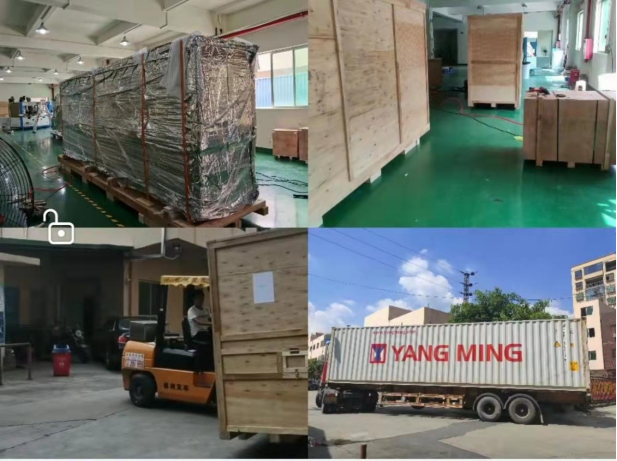

八，International Shipping Packing:

After-sales service:

well maintained, machine has a life of more than 10 years.

main components are international famous brands,

our machine operation concept is guaranteed by patent technology.

The whole machine is guaranteed for one year,

and the main parts are replaced free of charge during the warranty period

(except for man-made damage and vulnerable parts).

After-sales professional engineers provide technical guidance and and provide lifetime

technical support.

------------------------------------------------------------------
