JY-PG320 High-precision 2-hot stamping and 1-print intelligent combination equipment

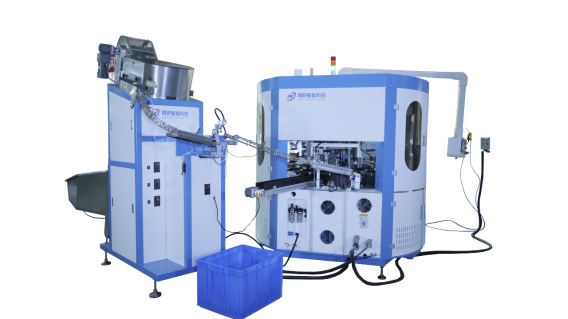

一，Appearance display of equipment:

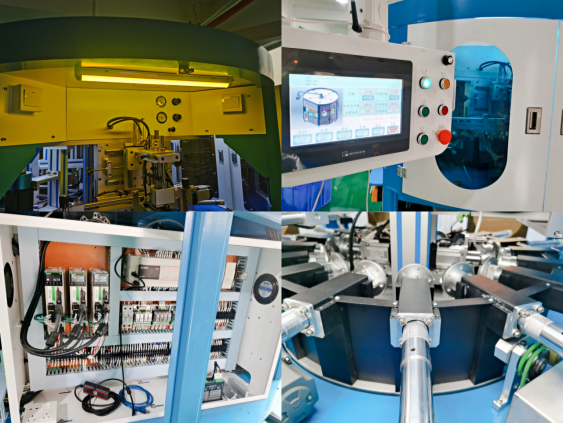

二， the equipment details display:

三, the technical parameters of the equipment:

Equipment model:                                          JY-PG320

Printing speed:                                               2500----3000PCS/hour

Maximum printing diameter of the product:    ∅20---50mm (diameter ∅42 when bronzing a full circle)

Printing product height:                                  25---70mm

Number of printing colors:                              2 bronzing 1 printing

Number of UV systems:                                 1 set of electronic UV independent control

Compressed air specification:                        5---7bar 100L/min

Printing speed:                                               2500---3000PCS/hour

Power supply:                                                 3 ∅ AC380V 20KW

Model dimensions:                                         1980mm (length) * 1820mm (width) * 2000mm (height)

Use area (length x width):                               7800mm (length) * 2500mm (width)

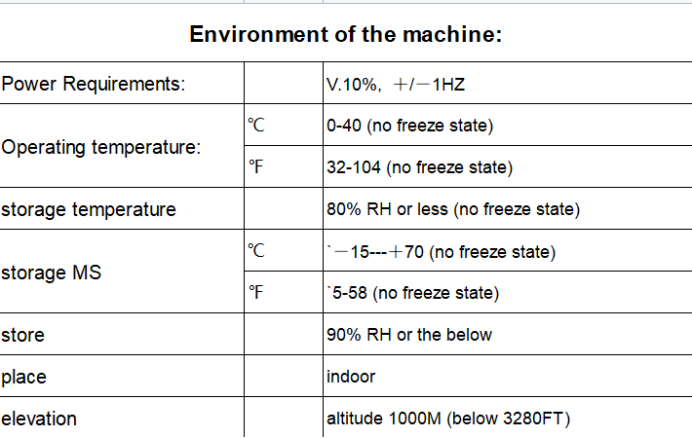

四， the storage and use environment of the equipment:

五， the scope of product application:

六, our services:

① If necessary, our engineers can provide door-to-door service.

② We will provide test videos and related test standards before delivery.

③ Please confirm the machine is good and debugging is completed before delivery.

④ We provide 12 months host warranty.

⑤ The products have  passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide a list of materials for wearing parts free of charge.

七，Our advantage:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,

    so afte r-sales service is perfact.

③ We are a professional manufacturer of high-end screen printing equipment integrating production

    and sales,and we have professional scientific researchers.

④ We have a dedicated after-sales service team,and solve all problems for you in time.

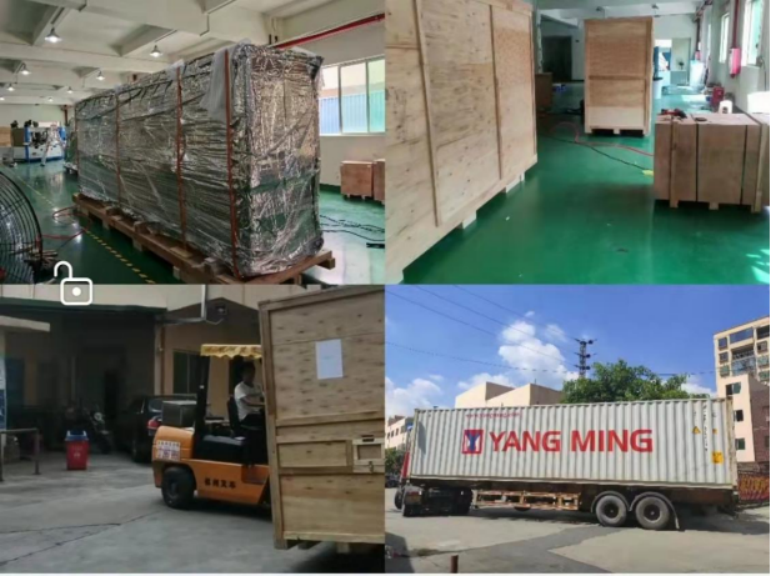

八，International Shipping Packing:

九，After-sales service:

well maintained, machine has a life of more than 10 years.

main components are international famous brands,

our machine operation concept is guaranteed by patent technology.

The whole machine is guaranteed for one year,

and the main parts are replaced free of charge during the warranty period

(except for man-made damage and vulnerable parts).

After-sales professional engineers provide technical guidance and and provide lifetime

technical support.
